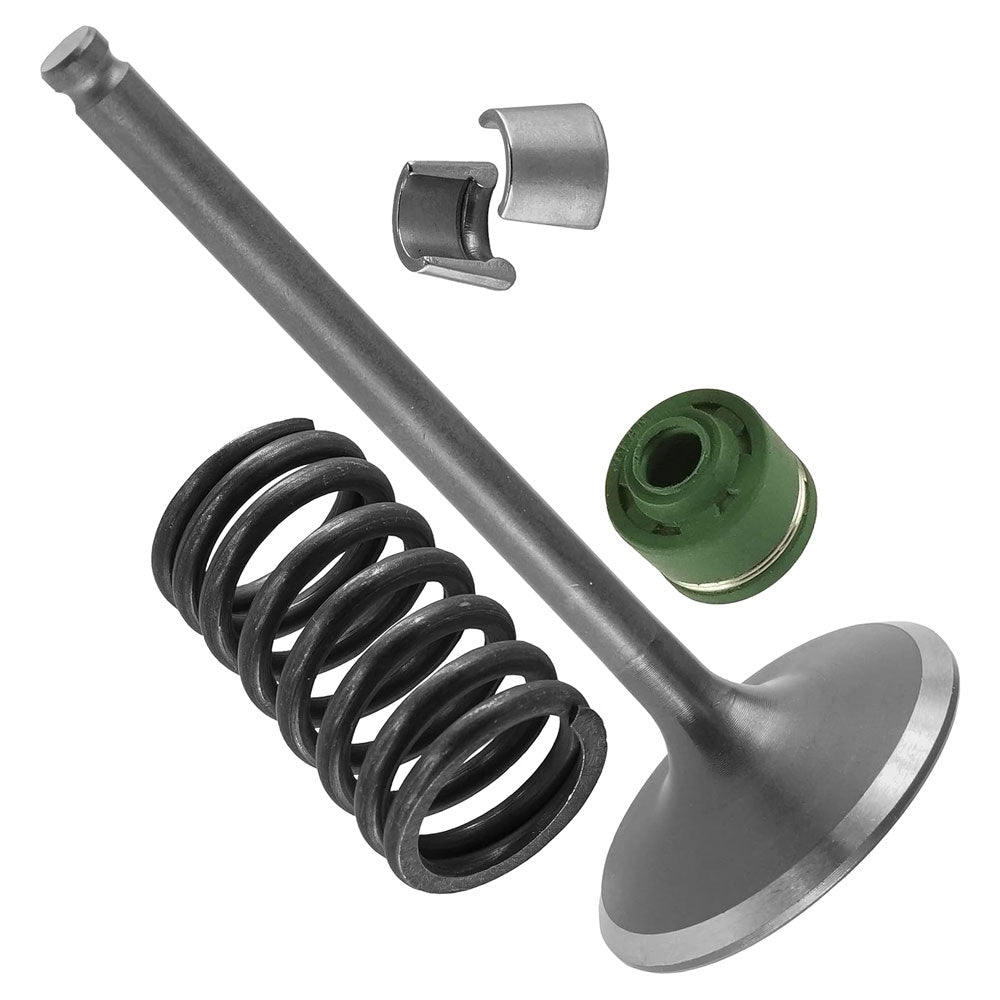

Yamaha YZ450F Caltric Intake Valve Kit

Fitment:
Yamaha YZ450F 2010-2013

Part Number:

Intake Valve: 33D-12111-00-00
Inner Valve Spring: 33D-12113-00-00
Valve Stem Seal: 51Y-12119-00-00
Valve Cotter: 3LD-12118-00-00

Dimensions & Measurements:
Intake Valve:
Intake Valve Length: 1.41" | 36.0 mm
Intake Valve Diameter: 3.30" | 84.0 mm

Inner Valve Spring:
Width: 0.90" | 23.0 mm
Height: 1.60" | 40.8 mm
Thickness: 0.12" | 2.1 mm

Valve Stem Seal:
Length: 0.43" | 11.0 mm
Width: 0.32" | 8.2 mm
Inner Diameter: 0.18" | 4.5 mm
Outer Diameter: 0.32" | 8.2 mm

Valve Cotter:
Width: 0.14 " | 3.8 mm
Length: 0.31 " | 8.1 mm
Height: 0.24 " | 6.1 mm
